Tenzan Millwright A machine stops. Work keeps moving.

When a machine stops, each of its orders moves to the qualified machine that should finish it first. For production managers and planners: pick a machine to take down and see where the work goes.

The rule and the timing

The rule is called MCT-S. On every 200 ms tick of the simulator it re-plans the earliest finish of every order, counting machine speed, transport and setup.

Free, and it runs in your browser. All data is simulated.

Take a machine down
MILL-01104.0 min MILL-0228.1 min MILL-03110.6 min MILL-0431.2 min MILL-0528.2 min ASM-A82.7 min ASM-B83.2 min TEST-B96.2 min

Down: MILL-03. Queue by priority, finish time per machine.

Want a similar tool built for your company? Describe your problem

Assigned: 3. Waiting in the pool: 0.

  1. The next tick, at most 200 ms later, marks the machine down.
  2. Its orders are ranked: critical, then rush, then normal.
  3. Each order goes to the qualified machine that finishes it first.
  4. The move costs 5 min of transport, plus 3 min of setup on a changeover.
How machines were selected

A frozen floor, not yours, with the demo's own rule and numbers. Finish = queue + transport (flat 5 min, no distance model) + setup (3 min, only on a changeover) + run (nameplate minutes × the machine's measured speed factor). The winner carries the order into the next placement, so the quickest machine does not win every time.

A stopped machine bills you by the minute. Only you know the rate.

What a failover saves depends on three numbers. All are yours.

Put your own numbers in
50,000/hr
30 min
120
Replanning by hand
30 min 25,000 lost
Millwright auto-response
8 min 6,667 lost
Difference per incident: by hand minus Millwright
18,333

Your figures: 50,000 lost per hour down, 30 min by hand. Millwright: 8 min (the next 200 ms tick, plus the demo's flat 5 min transport and 3 min setup). Manual minus automatic: 22 min. At 120 failures a year: 2,200,000 a year. The stopped machine's own output is still lost until repair.

Questions before you open it.

What machines and processes does it track?

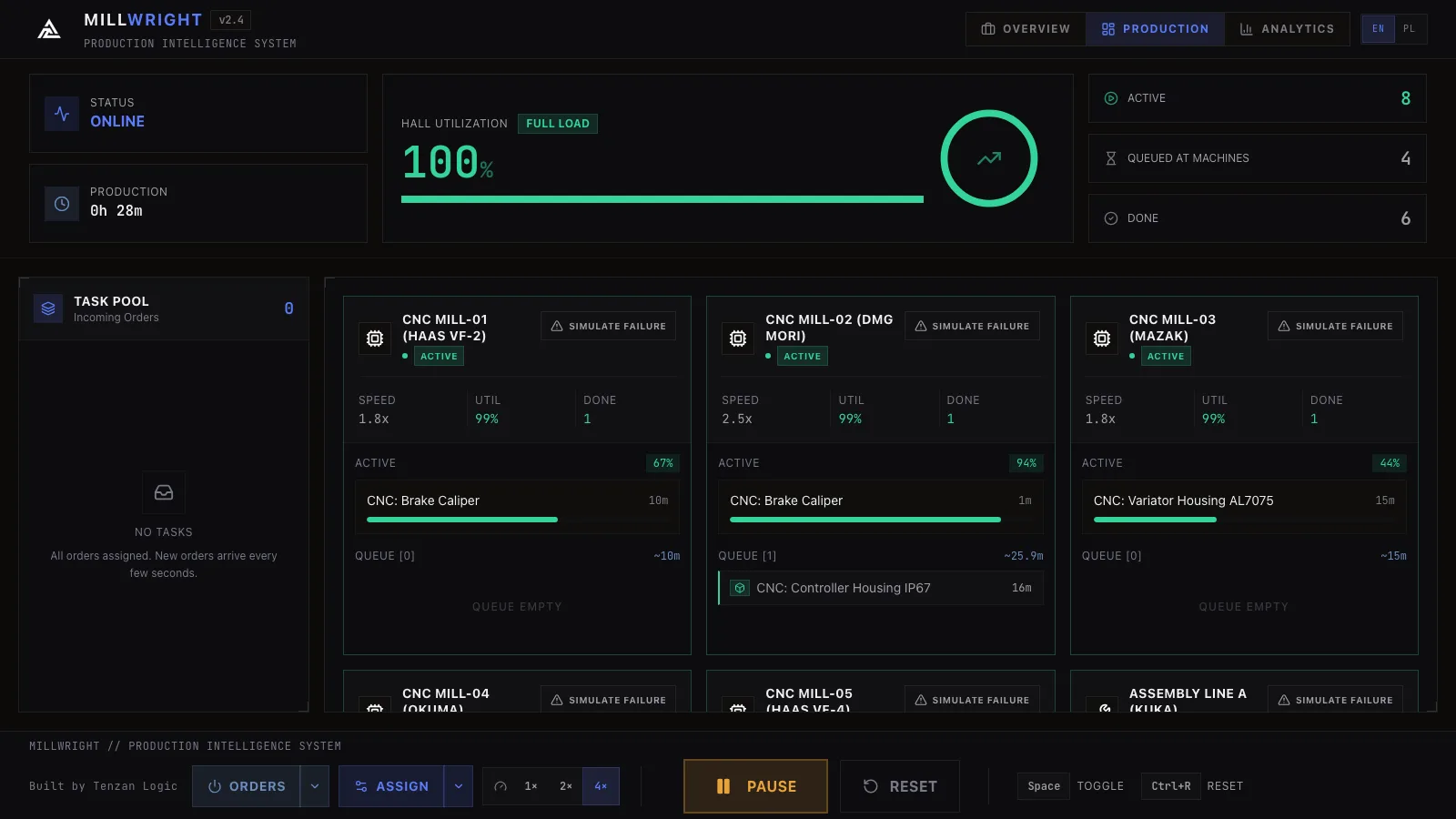

5x CNC, 2x Assembly, and 1x Test machine across 18 operation types, with live status and utilization data for every machine.
Do I have to change how my floor runs today?
Nothing changes. Millwright is a simulator that shows a rescheduling layer on top of a running floor: orders flow as normal, and MCT-S steps in only when a machine fails or the schedule needs rebalancing.
Is our production data secure?
No real production data: everything on screen is simulated. The demo runs in your browser and sends nothing to a server. The demo exports its event log as a CSV file.

The demo runs in your browser. Nothing to install.
